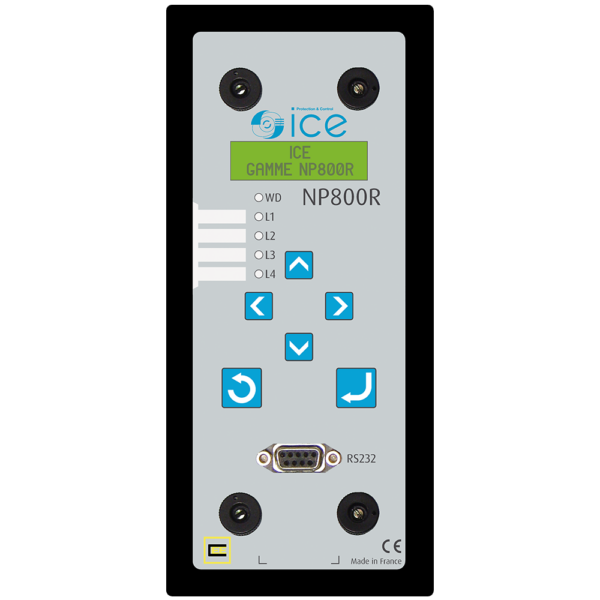

NPM800R

Motor protection

Our NPM800R (R2 case) is dedicated to the refurbishment of 7000 series of CEE 7000 motor protection relays.

Our NPM800R provides protection for medium-voltage motors and high-power lowvoltage motors.

This multifunction relay analyses the currents drawn by the motor during the starting, re-acceleration, and normal operating phases.

It also supervises the proper functioning of the circuit breaker and its tripping circuit.

CEE 7000 R case compatible

Minimises retrofitting costs

Reduces re-commissioning time

Easy to install and easy to use

Communication interfaces	RJ45 Ethernet 10 Mbits/s RS485
Communication protocols	Modbus RTU
Mesures and operations	Currents — Phase currents (IL1, IL2, IL3) Zero-sequence current — Zero-sequence current, high sensitive input
Mounting	R2
Power supply	19 to 70 Vdc 85 to 255 Vdc/Vac (50/60 Hz)
Current inputs	2
Sensitive current inputs	1
Disturbance records	4
Digital inputs	4
Digital outputs	3
Watchdog output	1
Indication LEDs	5
