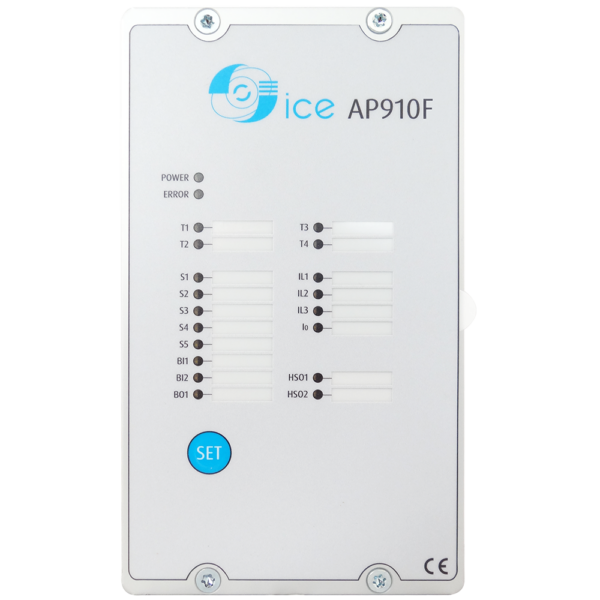

AP910F

Arc flash protection with fault current monitoring

AP900 Series - Arc flash

The AP910F Arc Flash Detector combines light detection or pressure change sensing caused by an arc flash event with real-time monitoring of current values flowing through the busbar, thereby enhancing the safety of your installation.

It is typically used as the master unit in a network of AP901 / AP902 sensors.

Arc flash protection with 360° fibre optic light sensor AS06 / AS07.

#ArcFlash, #Protection, #Relay

Equipment and people safety

Cost effectiveness

Flexibility

Reliability

Mesures and operations	Light — Light intensity (depends on sensors) Pressure — Change of pressure – Arcflash
Power supply	19 to 70 Vdc 92 to 265 Vac (50/60 Hz)
Current inputs	4
Digital inputs	2
Digital outputs	1
Dedicated trip outputs	4
Watchdog output	1
Indication LEDs	19
Fibre loop sensors	3
