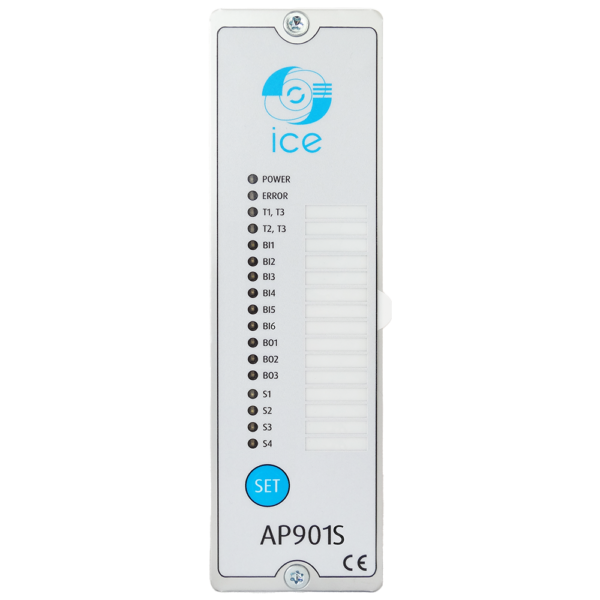

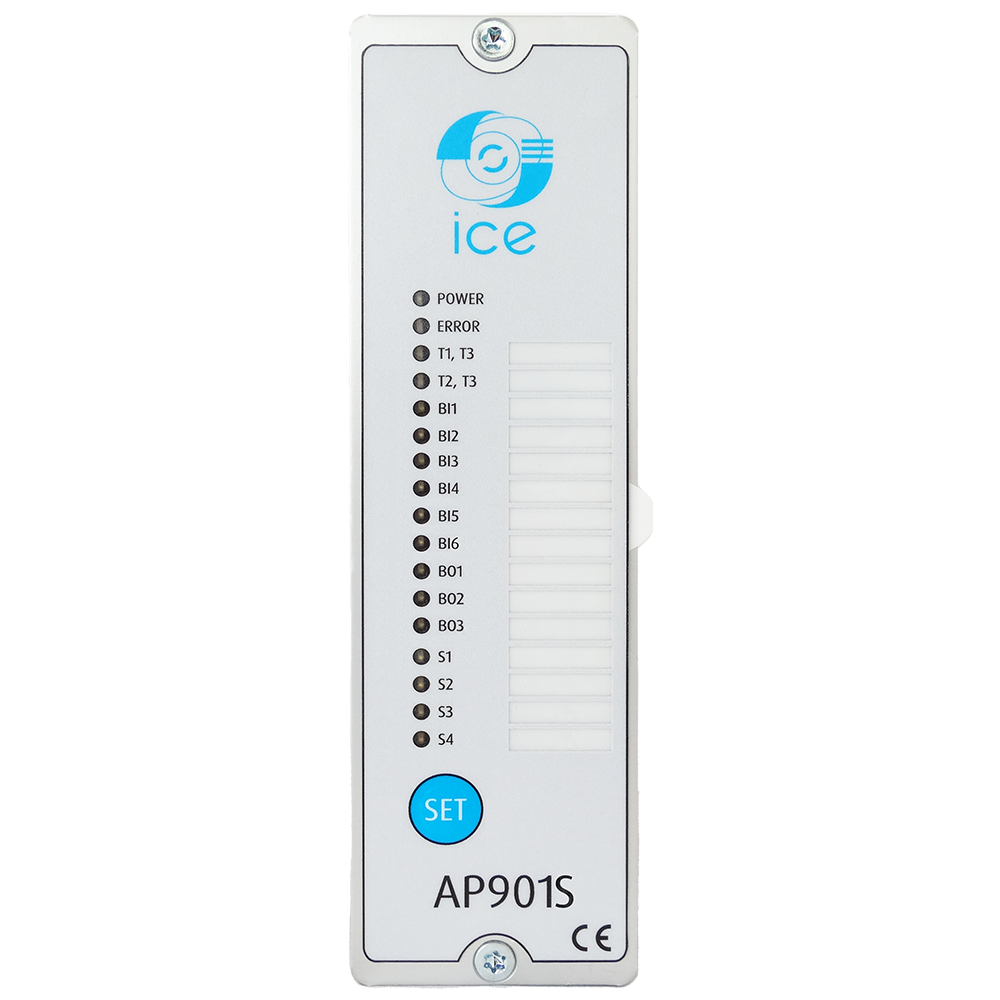

AP901S

Standalone arc flash protection

AP900 Series - Arc flash

The AP901S arc fault detector are standalone local protection devices. They can be paired with sensors monitoring a specific point or with a fibre optic sensor for 360° area detection.

Dedicated to light and pressure sensors, with an increased number of LEDs and DIs.

AP901S operate either autonomously or in a master/slave configuration with an AP910.

#ArcFlash, #Protection, #Relay

Equipments and people safety

Cost effectiveness

Flexibility

Reliability

Mesures and operations	Light — Light intensity (depends on sensors) Pressure — Change of pressure – Arcflash
Power supply	19 to 70 Vdc 92 to 265 Vac (50/60 Hz)
Digital inputs	6
Digital outputs	3
Dedicated trip outputs	3
Watchdog output	1
Indication LEDs	17
Point sensors	12
