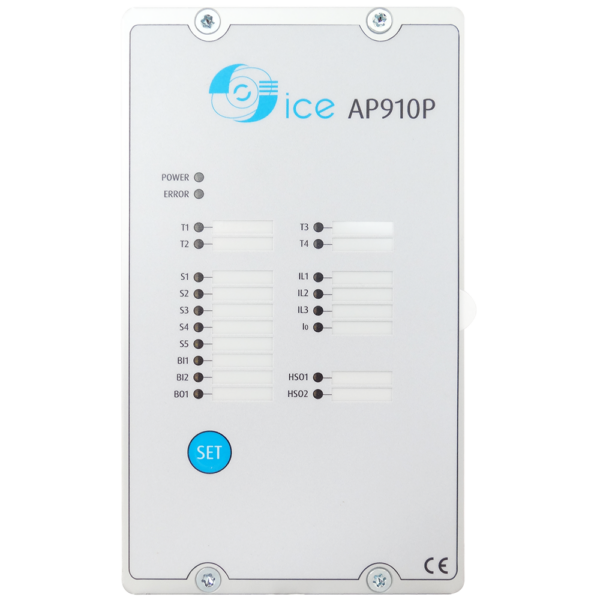

AP910P

Arc flash protection with fault current monitoring

AP900 Series - Arc flash

AP910P arc flash detector combine the detection of light or pressure changes caused by an arc flash event with real-time monitoring of current values flowing through the busbar, thereby enhancing the safety of your installation.

Arc flash protection with light sensor AS01 / AS02 and current measurement.

#ArcFlash, #Protection, #Relay

Equipment and people safety

Cost effectiveness

Flexibility

Reliability

Mesures and operations	Currents — Phase currents (IL1, IL2, IL3) Light — Light intensity (depends on sensors) Pressure — Change of pressure – Arcflash Zero-sequence current — Zero-sequence current, high sensitive input
Power supply	19 to 70 Vdc 92 to 265 Vac (50/60 Hz)
Digital inputs	2
Digital outputs	1
Dedicated trip outputs	4
Watchdog output	1
Indication LEDs	20
Point sensors	12
Fibre loop sensors	1
