NPBC915

Bay control

NP900 Series - Advanced protection

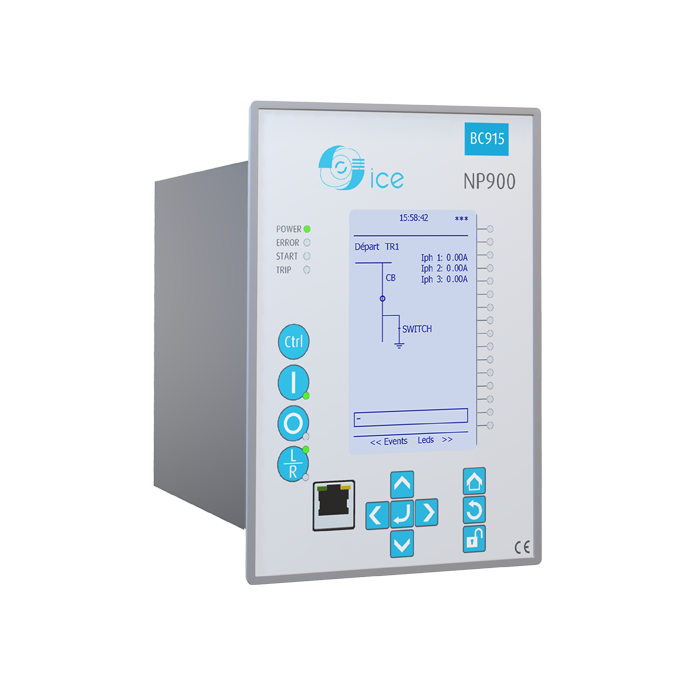

May be applied for various types of control applications. The NPBC915 comes with full current, voltage, power and energy measurement capability and may be equipped with additional I/O depending on application needs. Easy to use and powerful logic programming expands further the application range to more demanding control needs.

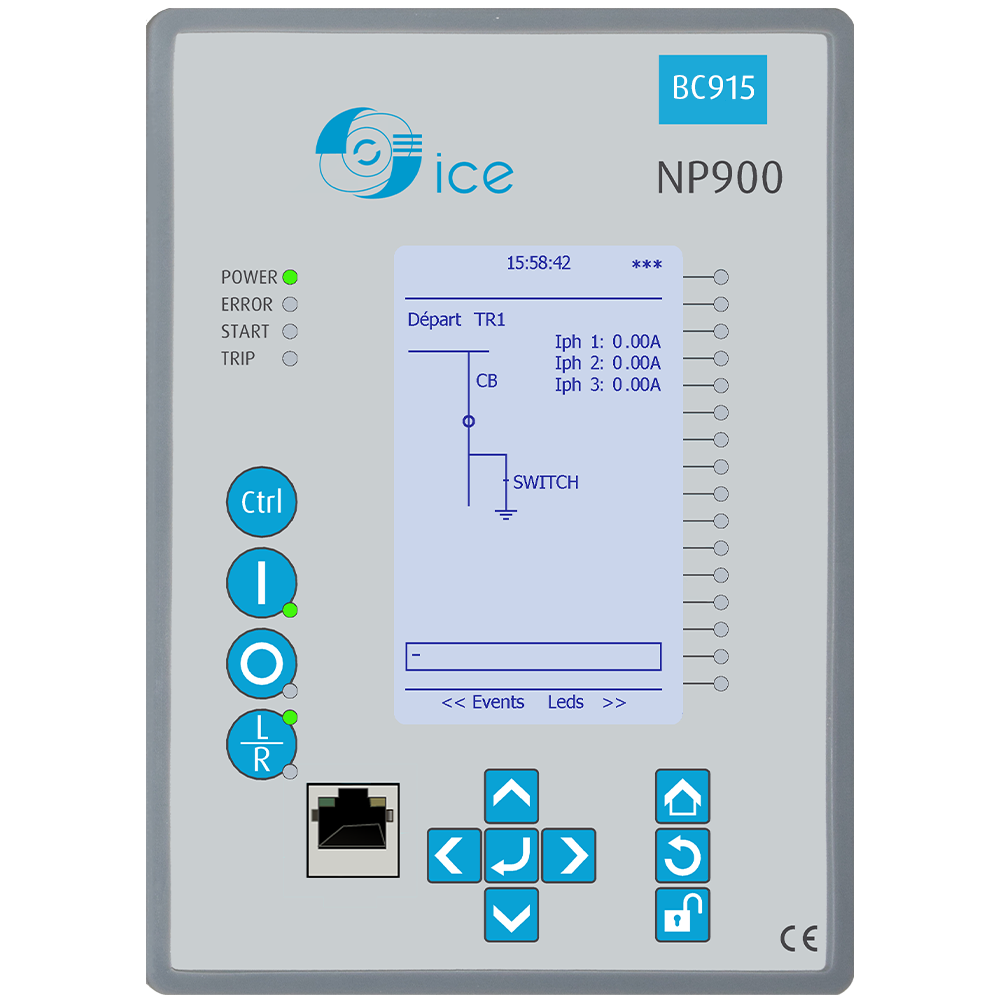

Optional cards (I/O, communication…) can be inserted depending on application requirements. Large freely programmable HMI display provides quick visualisation of the object, alarm and event status.

The NPBC915 communicates using various protocols including IEC 61850 substation communication standard.

#BayControl, #Protection, #Relay

Smart grid control

Communication interfaces	Double Ethernet RJ45 - 100Mbits/s HSR/PRP Double LC fibre Ethernet 100Mbits/s HSR/PRP Double RJ45 Ethernet 100Mbits/s Double ST fibre Ethernet 100Mbits/s RS232 RS485 Serial Optical fibre PP/PG/GP/GG
Communication protocols	DNP 3.0 DNP 3.0 over TCP/IP HSR / PRP IEC 60870-5-101 IEC 60870-5-103 IEC 60870-5-104 IEC 61850 ed1 IEC 61850-8-1 Goose IEC 61850-8-1 MMS Modbus I/O Modbus RTU Modbus TCP/IP SPA - Serial communication
Measurements & monitoring	Active energy — Active energy index (Ea+, Ea-) Active power — Active power (P) monitoring Apparent power — Apparent power (S) monitoring Busbar voltage — Busbar voltage monitoring Currents — Phase currents (IL1, IL2, IL3) Frequency — Frequency monitoring Harmonics — Up to rank 31 Perturbography — 400 Hz to 3,2 kHz (8 to 64 samples per period) Power factor — Power factor monitoring – cos(φ) Reactive energy — Reactive energy index (Eq+, Eq-) Reactive power — Reactive power (Q) monitoring Voltages — Phase voltages Zero-sequence current — Zero-sequence current, high sensitive input Zero-sequence voltage — zero-sequence voltage
Power supply	19 to 70 Vdc 80 to 265 Vac (50/60 Hz)
Type of option cards	2 x RJ45 100Mb Ethernet & IRIG-B card 2 x RJ45 100MB Ethernet (HSR, PRP) 2 x ST type 100Mb Ethernet & IRIG-B card 4 x outputs 0..24 mA - 1 x input 0..4000 mA card 5x digital output card 8 x RTD input card 8x digital input card Optical fibre LC type 100MB for HSR, PRP RS 232 - Serial fibre Plastic-Plastic type RS 232 Serial fibre - Glass-Glass card RS 232 Serial fibre - Glass-Plastic card RS 232 Serial fibre - Plastic-Glass card
Current inputs	5
Sensitive current inputs	2
Voltage outputs	4
Digital inputs	3
Digital outputs	5
Watchdog output	1
Indication LEDs	20
Number of optional modules	3
